Radiator Recycling Plant

The whole radiator recycling line adopts dry type physical separation technology. It can recycling aluminum, copper and iron from waste radiators efficiently by shredding, air separation and magnetic separation process. This copper aluminum radiator recycling machine has no much limit for the input materials, any damaged or deformed radiators and electronic rotors less than 16cm could be directly processed

Application

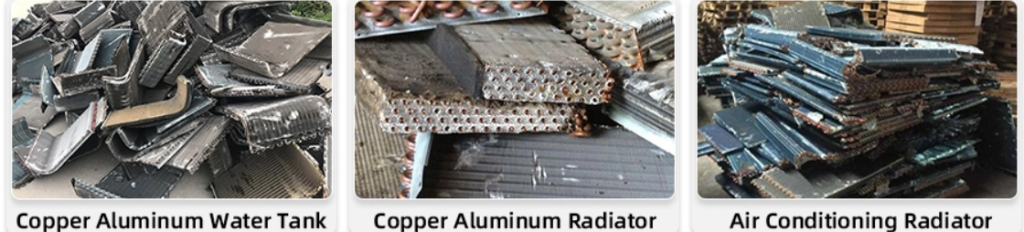

Large scale radiator recycling line is different from the average radiator recycling plant in the market, which was designed for all kinds of radiators from air conditioning, car, and water tank.
Who Should Use Radiator Recycling Machines
Metal recycling plants
Scrap yards
Auto dismantling businesses
HVAC repair shops
Green tech entrepreneurs

Flow Chart

1. Primary crusher (double shaft shredder)
To crush scrap radiators to 10-20mm pieces, then the crushed material is transported by the conveyor to the second crusher. Double shaft shredder has been proved to be the most efficience machine for metal recycling.
2. Secondary crusher
After transported to this crusher, the 10-20mm material is shredded by this crusher to smaller pieces.
3. Magnetic Separator
To separate iron from copper and aluminum, so that copper and aluminum can be separated easily.
4. Vibrating Separator
To separate copper pieces from aluminum pieces.
5. Pulse dust collector
