Cable Wire Recycling Plant

Cable Wire Recycling Machine is a kind of machinery used for recycling waste copper wire and cables to get copper particles and plastic particles, cable wire recycling machine is featured with novel design, compact structure, low power consumption and stable performance.
This intelligent, environmentally friendly device is designed specifically for processing all types of waste wires, cables, and communication cables. Using advanced physical crushing and sorting technology, it efficiently and cleanly separates the copper metal from the plastic sheathing in the waste cables, ultimately producing copper particles (and clean plastic particles) with a purity of up to 99%.

Application

Cable types include, but are not limited to: automotive wiring, motorcycle wiring, computer cables, communications cables, miscellaneous cables, and square wire.

Flow Chart

The entire production process is highly automated and integrated, with clear procedures, and only requires 1-2 people to operate.
Feeding: Scrap wires, after pre-processing (to remove large impurities), are fed into the feed conveyor.
Crushing: The material enters the crushing unit, where the cutter discs pulverize it into copper-plastic mixed granules.
Conveying: The crushed mixture is transported to the sorting system via a screw conveyor or elevator.
Sorting: The mixed material first passes through a vibrating screen for preliminary screening and dust removal before entering the core electrostatic separator for the final separation of copper and plastic.
Dust Removal: Dust generated throughout the entire process is collected by a pulse dust removal system, ensuring a clean, pollution-free production environment that meets environmental standards.

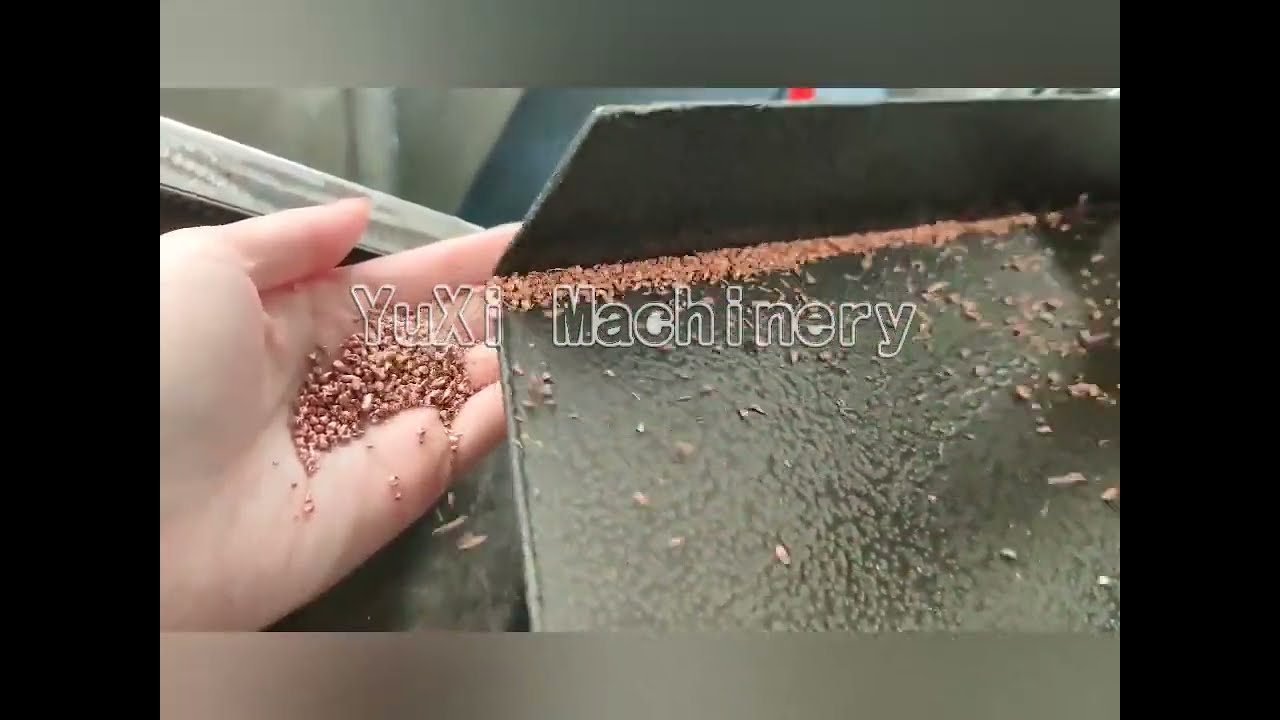

Discharging: The resulting pure copper rice and plastic granules are discharged through separate outlets and can be packaged and sold directly.

Features

1. High Recovery and Purity: Utilizing multi-stage sorting technology, the copper recovery rate reaches over 99%. The resulting copper rice is pure and free of impurities, allowing it to be used directly as raw material for copper smelting, commanding a higher price.
2. Environmentally Friendly and Pollution-Free: Dry physical sorting eliminates the need for water, wire burning, wastewater, or black smoke. Equipped with a highly efficient dust removal system, dust emissions are far below national environmental standards, eliminating secondary pollution.
3. Intelligent Automation: PLC control system with one-button start and stop ensures simple operation and minimizes labor costs. The equipment operates smoothly and is easy to maintain.
4. Customized solutions: We offer a variety of models (optional) and can customize the best solution based on your raw material characteristics and output requirements.
